How Resinoids Are Made: Solvents, Yields and Quality

A resinoid is made by dissolving a raw resin, balsam or gum in a volatile solvent, filtering out the plant debris, and then evaporating the solvent under reduced pressure until only a concentrated, mostly non-volatile extract remains. The solvent is almost always a hydrocarbon such as hexane, run through a batch or percolation extractor at moderate temperature; ethanol is used for a second stage or for materials that yield poorly to hydrocarbons. Unlike an essential oil, a resinoid is not distilled, so it carries resin acids, waxes, pigments and high-boiling aromatic molecules that steam would leave behind. Yield is reported as the weight of resinoid recovered per hundred parts of raw material, and it varies widely by resin, moisture content, and how much bark, sand or crystallized acid is mixed in with the harvest. Quality is judged on odor accuracy, solubility in alcohol, and residual solvent levels rather than on a single numeric standard.

What is a resinoid, and how does it differ from an absolute?

The word resinoid describes the product of hydrocarbon-solvent extraction of a solid or semi-solid raw material: a resin, a balsam, a gum resin, or dried botanical matter such as oakmoss. It is typically a thick, waxy, sometimes crumbly mass rather than a free-flowing liquid, because it still contains resin acids and lipophilic waxes alongside the odorous fraction.

An absolute is a further step. Resinoid, or concrete for flower waxes, is redissolved in cold or warm ethanol, which selectively dissolves the more polar aromatic constituents and leaves behind much of the wax and resin acid. The alcohol is filtered and evaporated to give the absolute, a smaller, usually more fluid and more concentrated fraction. Benzoin is a useful case because both stages are sold separately, as covered in Benzoin Absolute vs Resinoid vs Tincture.

How resinoid extraction actually works

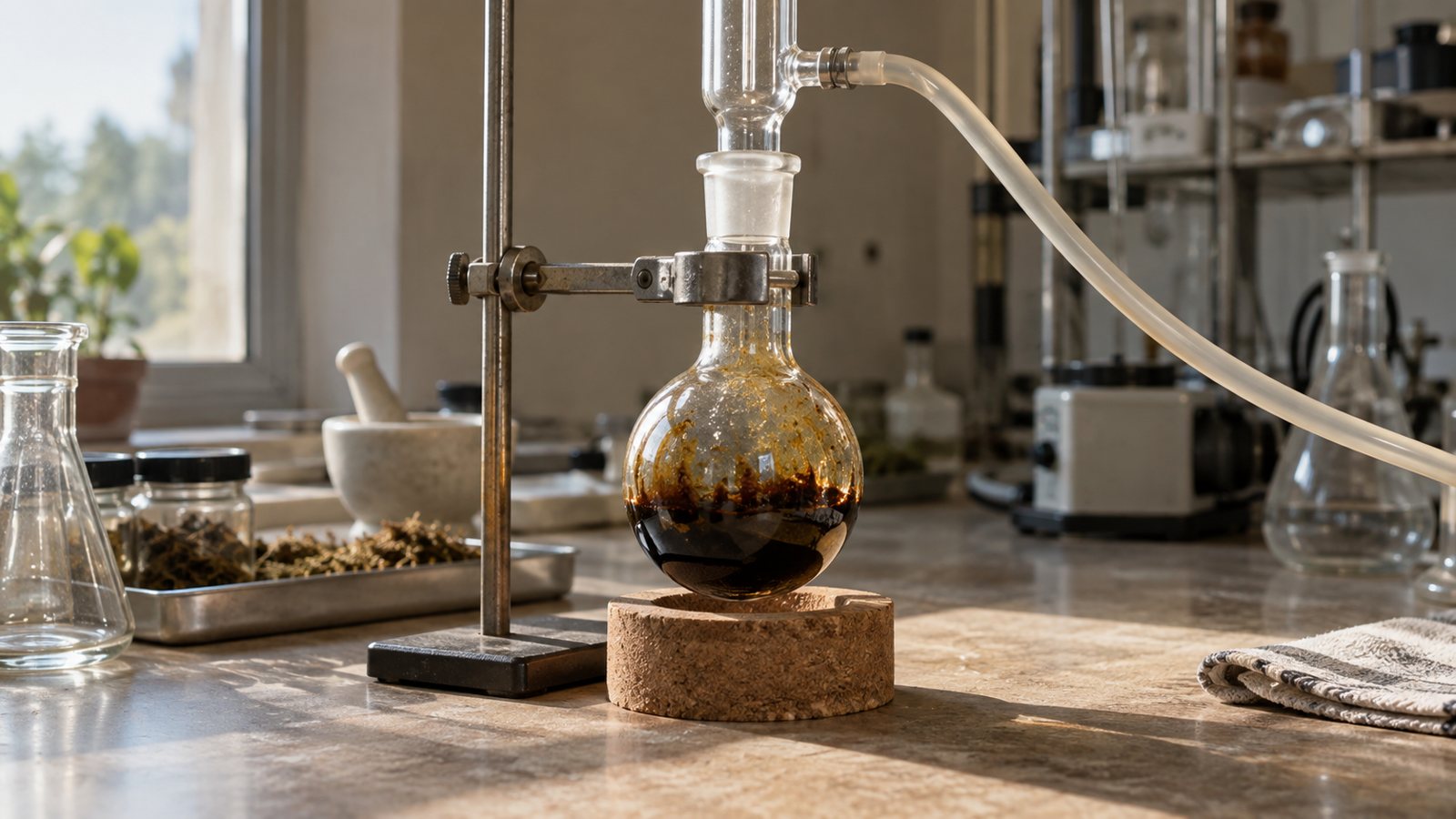

Crushed or chopped raw resin is loaded into a stainless steel extractor and washed repeatedly with solvent, either as a static soak or as a percolating flow through a bed of material. Each wash pulls more soluble matter into the liquid, called the miscella, until further washing adds little more. The spent marc is pressed to recover the last of the solvent-laden liquid, then discarded or, in some operations, used for lower-grade extracts.

Solvent choice: hexane, ethanol and historical benzene

Food-grade or technical hexane is the standard industrial solvent today because it is cheap, recovers efficiently by distillation, and dissolves resin acids and waxes well. Ethanol is used either as the sole solvent for some materials or, more commonly, as the second solvent that converts a hexane resinoid into an absolute. Older texts on the perfume trade describe benzene as a solvent of choice before its toxicity was understood; it has been abandoned in favor of hexane and, where regulation or buyer preference requires it, supercritical carbon dioxide.

From miscella to resinoid: evaporation and recovery

The filtered miscella goes into a vacuum still, where the solvent is boiled off at reduced pressure and low temperature to protect heat-sensitive aromatic molecules, then condensed and reused. What remains in the still is the resinoid: a viscous, often dark, sometimes brittle-when-cold mass that is packed hot into drums or tins. Trace solvent inevitably remains bound in the matrix, which is why finished resinoids are tested against residual-solvent limits before sale and why fragrance-industry standards restrict hexane residues in finished materials.

What determines resinoid yield?

Yield depends on how much of the raw material is actually soluble matter versus inert bulk. A clean, high-resin lot of gum yields more than a lot mixed with bark fragments, sand or crystallized benzoic acid, which is common in aged Siam benzoin and Sumatra benzoin. Extraction time, temperature, particle size and the number of solvent washes also matter: more washes recover more material but cost more solvent and processing time, so producers stop once the marginal return falls off. Moisture content skews yield figures too, since water is inert weight that dilutes the reported percentage depending on whether it is measured before or after drying.

What does a resinoid smell like compared to the raw resin?

A resinoid usually reads as a rounder, less sharp version of the raw material’s odor. Volatile top notes that would otherwise be lost to slow evaporation from a solid lump are retained and concentrated, while extraction can also pull forward heavier, sweeter constituents that are less apparent when the resin is simply warmed or burned. For benzoin, this means a resinoid smells more uniformly vanillic and balsamic, driven by the same benzoic acid, benzyl benzoate and vanillin that define the raw resin’s profile, but with less of the resin’s dusty, slightly acrid edge. The full molecular picture is set out in Benzoin Chemistry.

How is resinoid quality assessed and adulteration spotted?

Buyers evaluate a resinoid on odor against a known reference standard, solubility, color, and consistency. Residual hexane is checked because both regulation and finished-product safety depend on it staying below agreed limits. Adulteration usually takes the form of diluting resinoid with cheaper resin extracts, adding synthetic vanillin or benzyl benzoate to cheapen or standardize the odor, or substituting a related but distinct resin. Comparing a natural resinoid against its main synthetic substitutes is covered in Natural Benzoin vs Synthetic Benzyl Benzoate and Vanillin.

Resinoid, absolute or tincture: which does a perfumer reach for?

The choice depends on how much of the raw resin’s full character is wanted. A resinoid gives the broadest palette, including the waxier, heavier notes, and is most cost-effective as a base-note fixative. An absolute is cleaner, more soluble, and easier to dose precisely in alcohol-based formulas. A tincture, made by soaking crushed resin directly in alcohol without solvent extraction or evaporation, is the simplest option and the one most accessible outside an industrial lab; the method is described step by step in How to Tincture Resins for Perfumery. All three appear across the wider resin trade discussed in Resins in Perfumery.

Benzoin resinoid as a working example

Commercial benzoin resinoid is made almost entirely from Siam and Sumatra gum using hexane extraction, because the raw resin is too solid and too low in volatile oil to make steam distillation worthwhile. The resulting resinoid is a thick, honey-to-brown mass that must often be warmed before it can be weighed or dissolved. It is sold alongside benzoin absolute, made by the further ethanol wash described above, and both are common base-note fixatives wherever a formula calls for balsamic sweetness without the astringency of the raw gum.
